About This

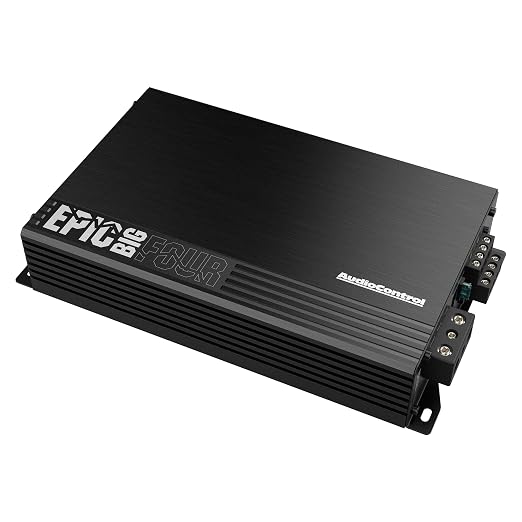

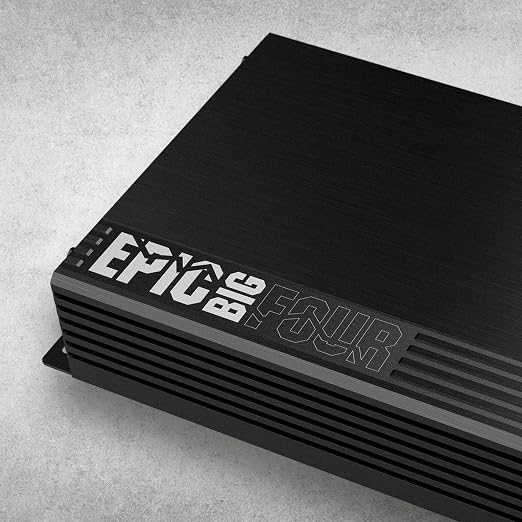

• 𝗖𝗼𝗺𝗽𝗮𝗰𝘁 𝟰-𝗖𝗵𝗮𝗻𝗻𝗲𝗹 𝗔𝗺𝗽𝗹𝗶𝗳𝗶𝗲𝗿: This digital Class D amp is equipped with a rugged, low-profile chassis and line-level inputs for use with most vehicles with aftermarket head units (6.1” W x 10.56” L x 2.01” H).

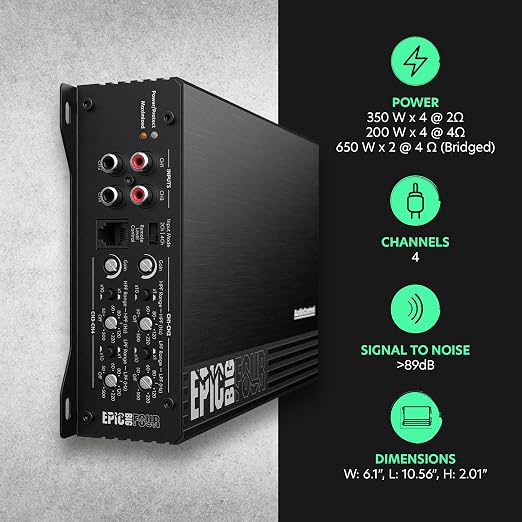

• 𝗥𝗼𝗯𝘂𝘀𝘁 𝟭𝟰𝟬𝟬𝗪 𝗥𝗠𝗦 𝗣𝗼𝘄𝗲𝗿 𝗢𝘂𝘁𝗽𝘂𝘁: This 4 or 2 ohm stable amplifier delivers heart-pounding low end with precise clarity (89 dBa signal-to-noise ratio).

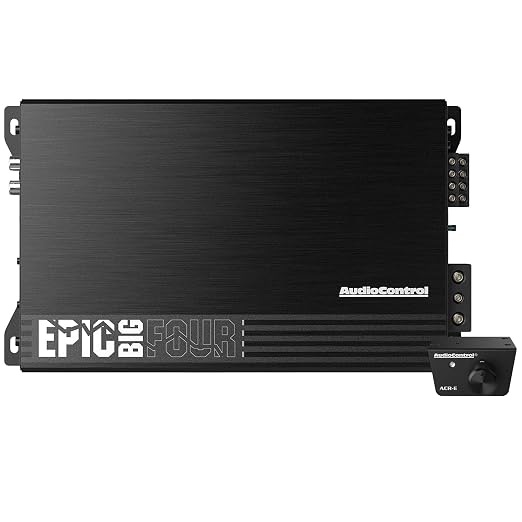

• 𝗜𝗻𝗰𝗹𝘂𝗱𝗲𝗱 𝗕𝗮𝘀𝘀 𝗖𝗼𝗻𝘁𝗿𝗼𝗹 𝗞𝗻𝗼𝗯: Control the volume of your car subs from the driver’s seat. The ACR-E can be mounted with the included dash bracket or flush mounted directly on the dash, console panel, or other areas for custom installations.

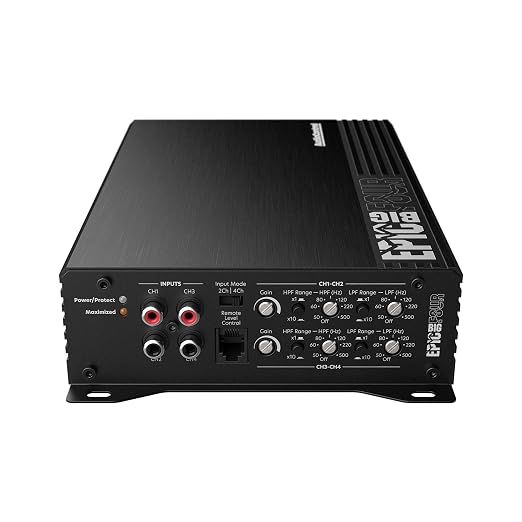

• 𝗩𝗮𝗿𝗶𝗮𝗯𝗹𝗲 𝗛𝗶𝗴𝗵 𝗮𝗻𝗱 𝗟𝗼𝘄 𝗣𝗮𝘀𝘀 𝗙𝗶𝗹𝘁𝗲𝗿𝘀: 12dB/octave Linkwitz-Riley crossovers ensure only the correct frequencies reach your car speakers.
• 𝗨𝗹𝘁𝗿𝗮-𝗘𝗳𝗳𝗶𝗰𝗶𝗲𝗻𝘁 𝗜𝗱𝗹𝗲 𝗗𝗿𝗮𝘄: Prevents battery drain to ensure you always arrive to the party in style.
• 𝗠𝘂𝗹𝘁𝗶𝗽𝗹𝗲 𝗕𝘂𝗶𝗹𝘁-𝗜𝗻 𝗣𝗿𝗼𝘁𝗲𝗰𝘁𝗶𝗼𝗻 𝗠𝗼𝗱𝗲𝘀: Protect against low/high voltage, unexpected short-circuits, or other potential electrical or thermal hazards to keep this 1400W amp in excellent working condition.

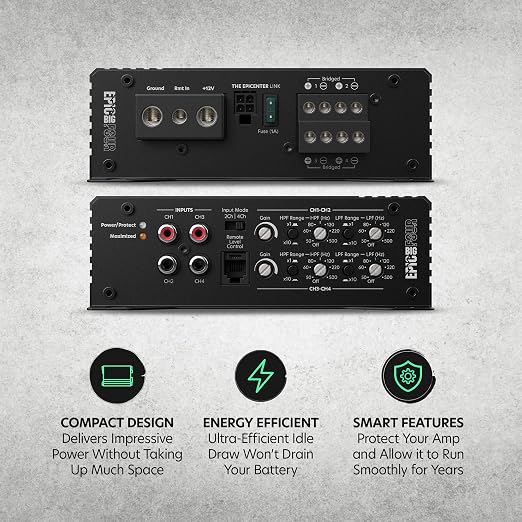

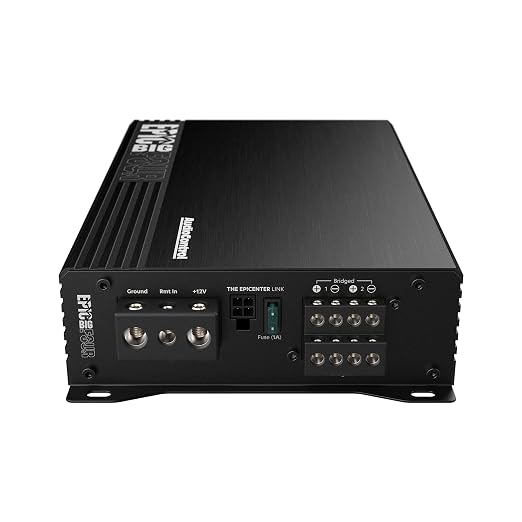

• 𝗣𝘂𝗿𝗲, 𝗨𝗻𝗶𝗻𝘁𝗲𝗿𝗿𝘂𝗽𝘁𝗲𝗱 𝗣𝗼𝘄𝗲𝗿: Direct wire terminals with hex screws (4GA power, 8GA speaker terminals) provide solid connections for maximum, reliable current flow. Recommended fuse rating 150A (sold separately).

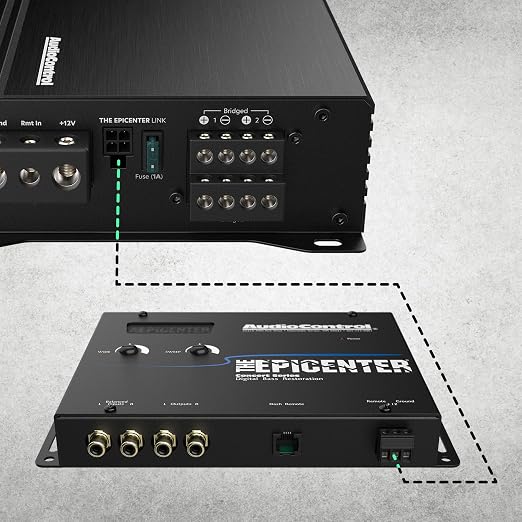

• 𝗕𝘂𝗶𝗹𝘁 𝗳𝗼𝗿 𝗧𝗵𝗲 𝗘𝗣𝗜𝗖𝗘𝗡𝗧𝗘𝗥: Easily connect your car amplifier to legendary bass restoration processor (sold separately) via The EPICENTER Link port, which provides +12V power, ground, and remote-turn on with built-in fuse protection.
• 𝗣𝗮𝗶𝗿 𝘄𝗶𝘁𝗵 𝗘𝗣𝗜𝗖 𝗦𝗽𝗲𝗮𝗸𝗲𝗿𝘀 𝗮𝗻𝗱 𝗦𝘂𝗯𝘄𝗼𝗼𝗳𝗲𝗿𝘀: Unleash groundbreaking volume and crystal-clear audio throughout your entire car sound system.

Overview

• Maximum Supply Voltage: 12 Volts
• Mounting Type: Through-Hole Mount
• Number of Channels: 4
