About This

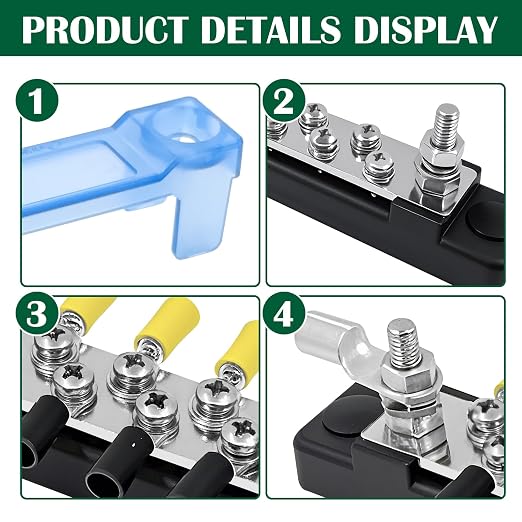

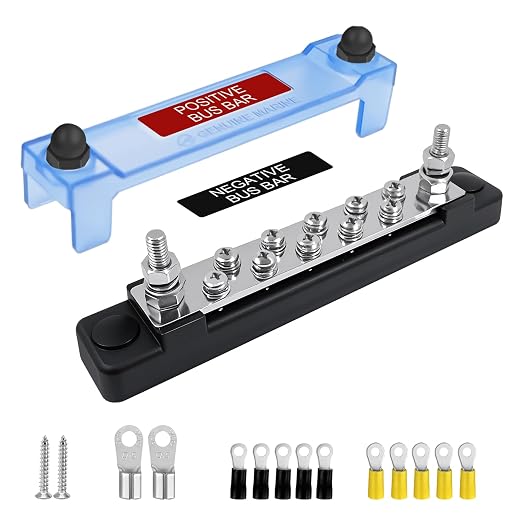

• Automotive Bus Bar Package – (1) 12V bus bar 150a automotive RV/ M6 terminal block with PC protective cap, (2) 2 screws, (3) distinguish positive/negative stickers(black/red), (4) 10 yellow ring terminals/10 black ring terminals/2 metals ring terminals, (5) 4 black nut, (6) 1 blue protective cover/the protective cover is made of PC to prevent accidental electrical short circuit. This ground bus bar 12V is nice quality and reasonably compact. The plastics are high quality and the coverage of the lid is nice and tight preventing shorts.

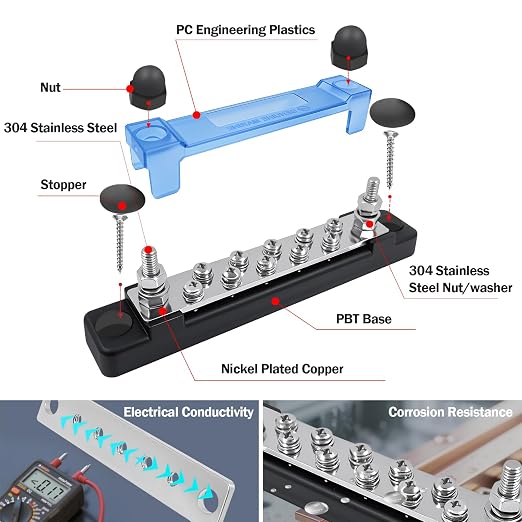

• High Quality(ground busbar) - The 12V marine bus bar waterproof/150A automotive ground bar of PBT base-flame retardant/high temperature resistant/high strength/aging resistant; nickel plated copper/heat conductive/corrosion resistant; 304 stainless steel screws and nuts/304 stainless steel nuts and washers.Construction of this power bus bar is flawless and robust. The stud and nuts evidence weak magnetism, which is consistent with 304 stainless steel which has been cold worked.
• Ground Bus Bar Terminal Block 12V-max voltage: 300V AC/ 48V DC. max continuous amperage: 150A DC/ 130 AC; 12 Volt Bus bar 150 amp include 2 x M6 post for large cables and 10 x M4 terminal screws bolts for smaller loads.TIPS:M6 busbars with metric specifications are not suitable for 1/4 bolts.This is a negative bus bar 12V marine ul listed made for some serious applications.

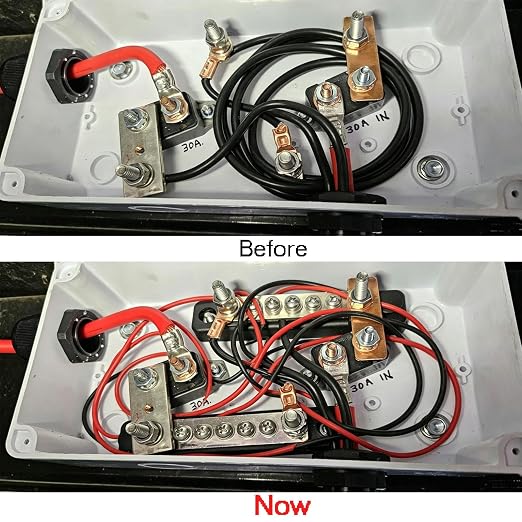

• Appliance: 150A bus bar terminal block 12V/ power positive and negative automotive bus bar can keep the circuit clean/makes wiring look more efficient. (Positive/Negative) and reduce the possibility of short circuit. bus bar 12V marine waterproof/ground terminal busbar/boat bus bar gives a neat and clean finish to any installation in your marine RV model railroading or lighting up displays.

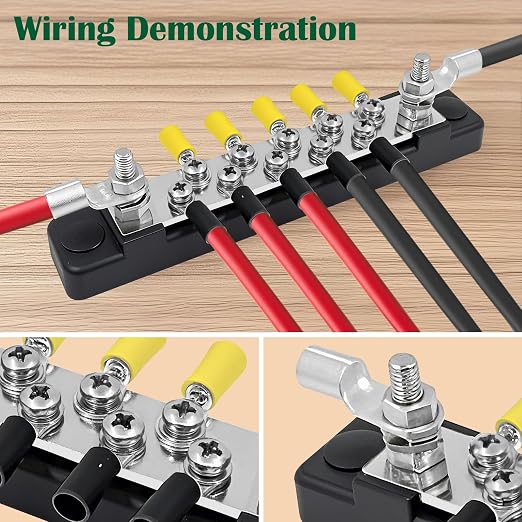

• Easy Installation-distribution block car audio contains a red and black unit for positive and negative connections. Terminal blocks 12V well laid out and due to their diagonal positioning, the M4 bolts are easy to reach and arrange. The kit includes bigger M6 studs for the main supply wiring connections. The ring terminals for the M4 bolts/Screws are included for 16-18 ga wire and the ring terminals for the M6 studs are included for 10-12 ga wire.

Overview

• Current Rating: 150 Amps
• Connector Type: Screw
• Number Of Contacts: 10
• Mounting Type: Panel Mount
• Material: Copper, Polybutylene Terephthalate (PBT), Polycarbonate (PC), Stainless Steel
• Color: 150A - 2 Posts + 10 Terminals
• Voltage: 48 Volts
• Number Of Poles: 10
• Centerline Length: 6.18 Inches
